Version 2.0
Coming April 2023 for Android

High Voltage Battery State of Health Testing
​just became simpler and more powerful.

Performing the test is simpler than ever.

BATTSCAN is still the only professional diagnostic tool to provide a comprehensive High Voltage Battery State of Health Analysis by taking the Hybrid or Electric Vehicle on a voice-guided road test. The test takes minutes and the report is produced in seconds.
◉  Connect the BATTSCAN hardware to the vehicle's OBDII port
◉ ◉  Connect an iOS or Android device to the hardware's Wi-Fi signal
◉ ◉ ◉  Listen to the voice-guidance and follow driving commands
◉ ◉ ◉ ◉  Review the Test Conclusion Report

The test method has been optimized for up to 40% reduction in open roadway required.  ​
Shape Divider - Style tilt

Broader State of Health Reporting:
​See the Bigger Picture and the Critical Details

Sample BATTSCAN Test Conclusion Report
Sample Test Conclusion Report
BATTSCAN concludes a test when it has collected enough data from the vehicle to make a conclusion (or analysis) about the High Voltage Battery State of Health.

A Test Conclusion Report is always produced for any test that was not terminated due to a user (diagnostician) error.  BATTSCAN identifies and analyzes the characteristics of a High Voltage Battery and provides:

  • A clear view of module or cell health
    • Green/Yellow/Red color coding for easy interpretation
  • The health of the battery's Energy Capacity (State of Charge/SoC)
  • The test phase in which BATTSCAN received enough data to conclude the test
  • The reason for concluding the test
  • The variation between module or cell voltages (if significant)
    • Including the highest and lowest voltages observed
  • The lowest observed State of Charge percentage (if significantly declined)
  • Diagnostic Trouble Codes that may have logged during testing
Shape Divider - Style curve

Insights for Service Professionals - And Their Customers, Too.

​BATTSCAN's reporting was crafted with both automotive service professionals AND vehicle owners in mind.

Every vehicle experiences aging and wear in a way that is unique to its driving history. It is the responsibility of professionals to provide a clear picture of a vehicle's health, so that the owner can make informed decisions.

​Each section of a Test Conclusion Report can be reasonably understood by non-professionals, so that a copy can be provided to the vehicle owner by using the report exporting features.
Sample Test Conclusion Report:
Test concluded due to declining energy capacity
(Low State of Charge)
Sample Test Conclusion Report:
Test concluded due to large variation in voltages between the HV Battery modules or cells
Sample Test Conclusion Report:
The test was concluded after all possible testing was completed - the HV battery is in good health
Shape Divider - Style curve

A Record is Kept of Every Test
​Even the unsuccessful ones

Tests are only terminated when the user makes a critical error. BATTSCAN's app-based software includes overviews, tutorials, and user guidance during the test, but sometimes terminating a test is unavoidable.

Mistakes happen - and each BATTSCAN test that has been terminated is a part of the vehicle's service history. Each one is recorded in the Termination Records, where the user can review the error and export a copy to include in the vehicle's service history.

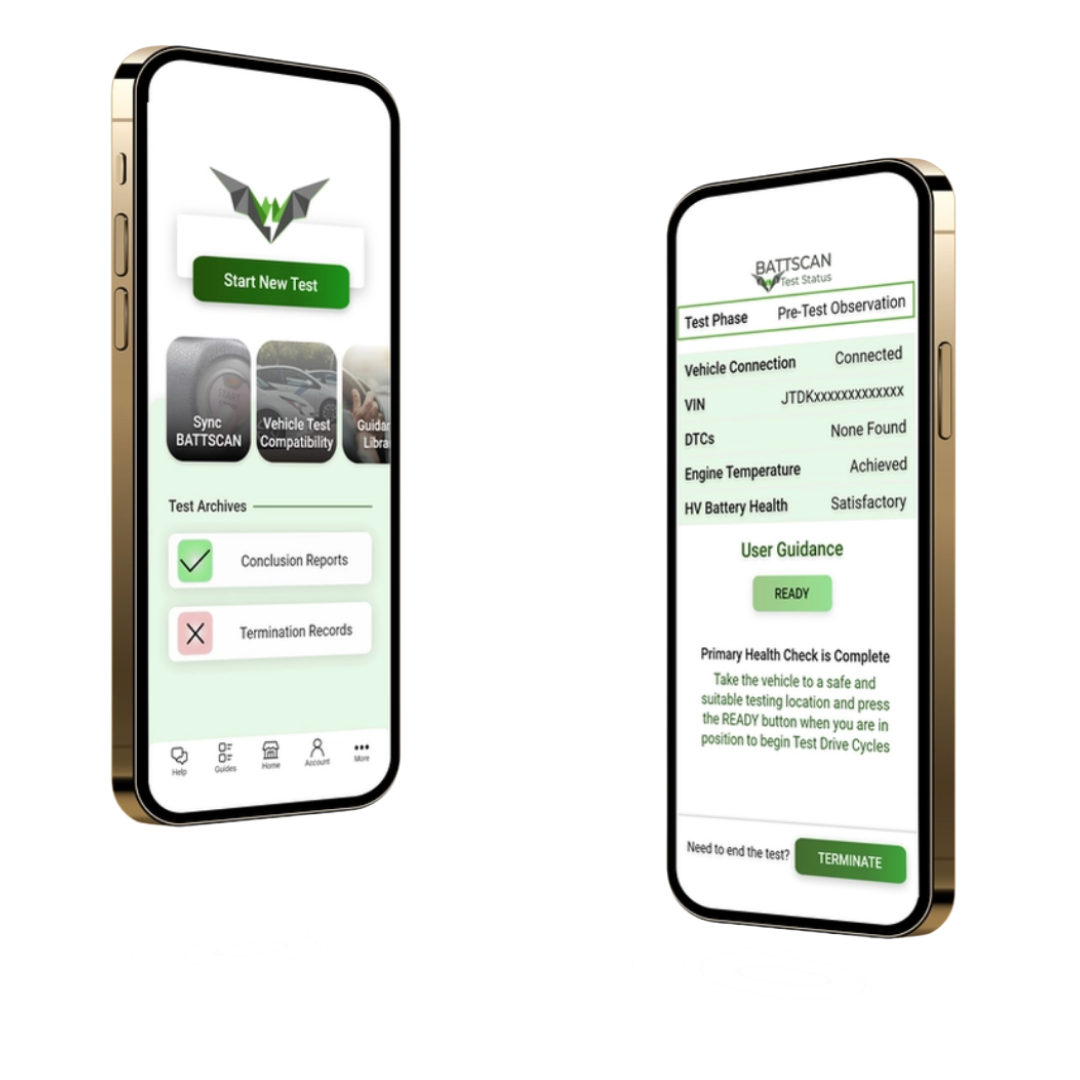

A Remastered Testing Interface and User Guidance

New Visual Layout
  • Color Coding identifies test progress
  • Test Phases are clearly labeled
  • Intuitive display of information
Updated Voice Guidance
  • New guidance for clarity & efficiency
  • New guidance for unique scenarios
  • Added tones to follow test progress
Expanded On-Screen Guidance Text
  • Larger on-screen text guidance area
  • Text follows voice guidance closely
  • Impedes accidental button pressing

So....What Else is New?

A new home screen with quick links to refreshed user support features:
  • Sync BATTSCAN - Save your test history in the cloud
  • Vehicle Test Compatibility - Stay up to date with the list of vehicles supported
  • Test Guidance Library - A complete catalog of voice guidance sound clips and on-screen text so that you know what to expect during a test
  • A Walkthrough Tutorial - Take a quick course on how to properly perform a test
  • Safety and Best Practices - To ensure stay safe while performing testing
  • Technical Support - Submit a support request to the new ticketing system​

Plus:
A new menu to view additional support pages, such as the user profile, troubleshooting, submitting a functionality request, and more.


See the New BATTSCAN in Action

In this demo:
The test and guidance are demonstrated in a scenario where the user completes all test phases without encountering signs of significant decline, up through the five possible Test Drive Cycles.

Test Conclusion report is produced that indicates the vehicle's battery is in good condition.
But what if...?
...The user did not perform the test properly?
BATTSCAN may terminate the test, requiring the user to attempt it again.

...the High Voltage Battery was showing signs of aging or wear?
The test would conclude when BATTSCAN had analyzed enough vehicle data to demonstrate functional decline.  The test can conclude in any of the test phases (Primary Health Check, Pre-Test Observation, and Test Drive Cycles).

Stick around for updates as we get closer to the release date!

Check back frequently for updates, including demos and videos, guides, FAQ's, and more.
​
OR - Join the mailing list to receive all of the info straight to your inbox!
